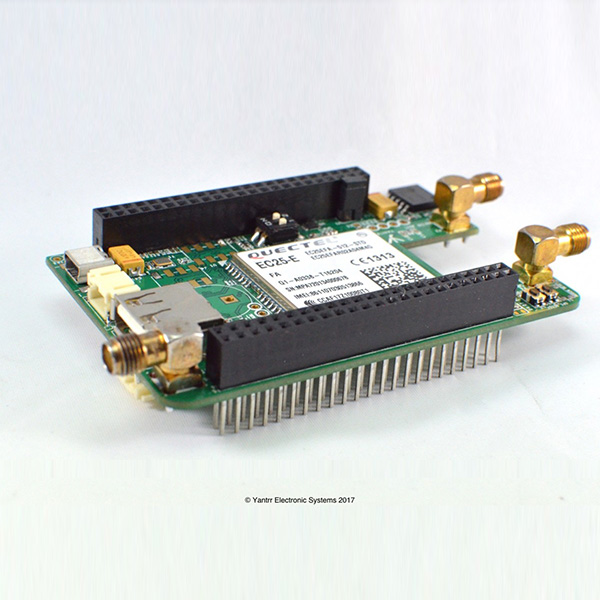

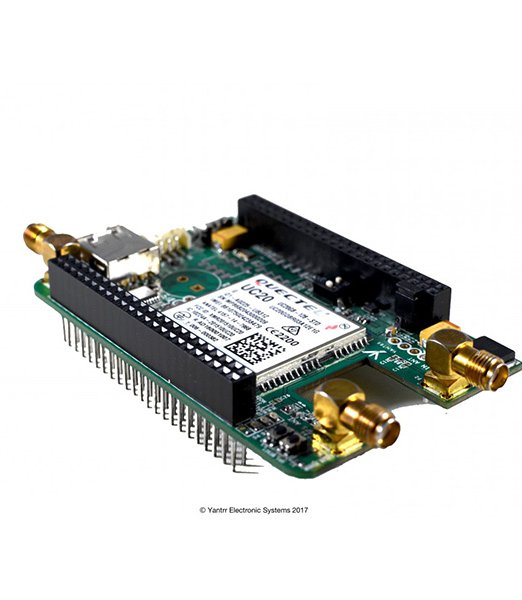

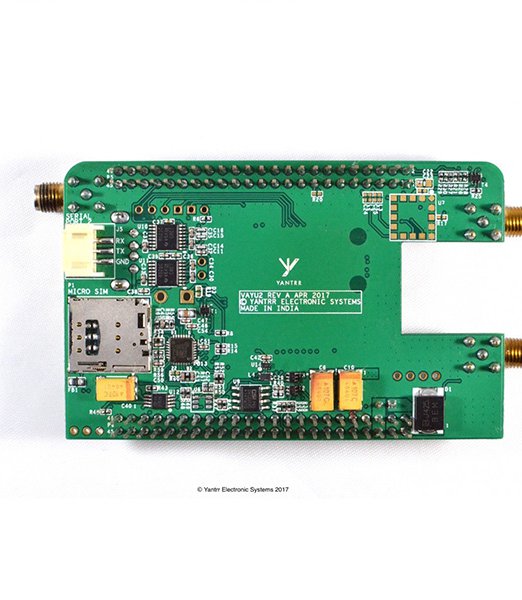

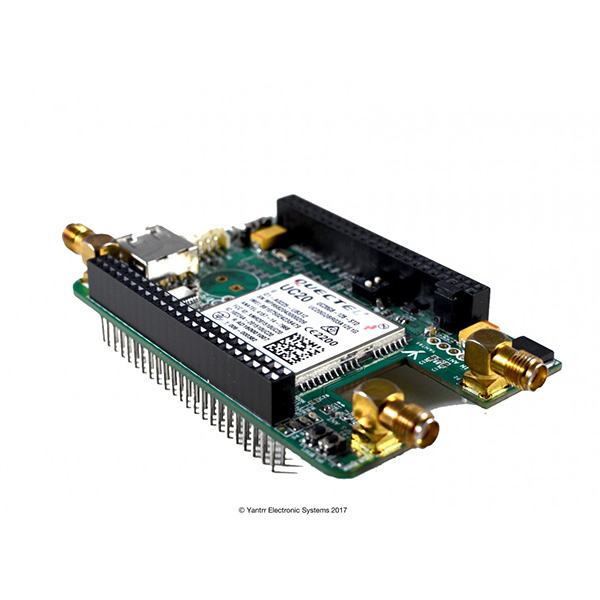

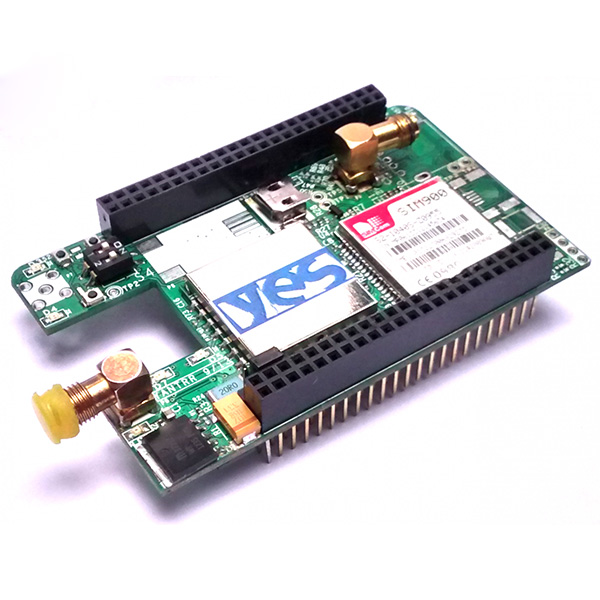

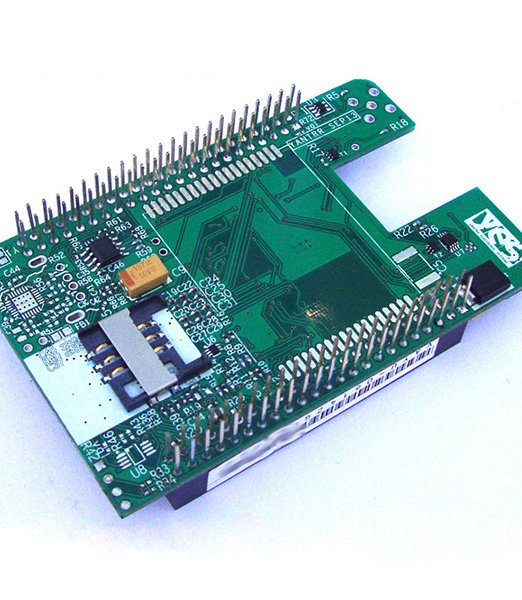

M2M cellular capes for BeagleBone Black with worldwide supported LTE/4G/3G GPRS, provide seamless high speed internet connectivity. Integrated GPS/GLONASS based geolocation is available in newer models.
These capes are compatible with many sensor capes available for BeagleBone Black. Thus the capes can convert your BeagleBone to a true “M2M” gateway, and one can upload sensor data directly to the cloud using this Plug-n-Play add-on. These capes are mounted on standard BeagleBone header and connect to HS USB Host port through the provided cable.
Modem Options:
- GSM, 3G/HSPA+ Global bands
- 4G/LTE CAT1/CAT3/CAT4 for Europe/North America (AT&T), Australia
GNSS:
- GPS/GLONASS
Applications:
- Remotely access your BeagleBone system from anywhere on the world
- Send local sensor data onto cloud using secure wireless gateway
- Make industrial automation solution based on ModBus/CAN (Yantrr INDU Series Industrial Capes), wireless ZigBee and easily control system by mobile phones or web browsers
- Turn your BeagleBone into a small NTP Server
- Send time and location stamped data directly to the cloud from a remote location using these capes, and Yantrr Device Cloud
In addition to providing data communication, some cape models feature 2x ruggedized UART ports with +/- 15KV ESD protection and +/- 25V signaling tolerance. These UART ports overcome standard BeagleBone UART signalling limitation of 3.3V I/O.
Note: Some LTE region options may have a longer lead time
