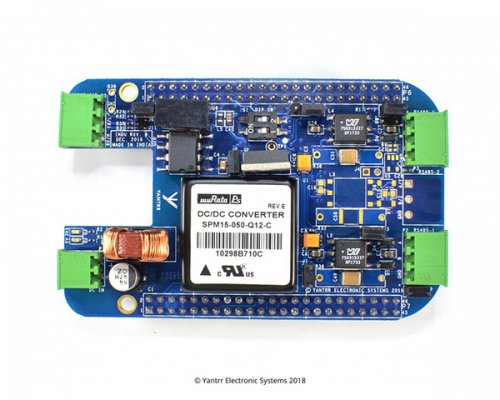

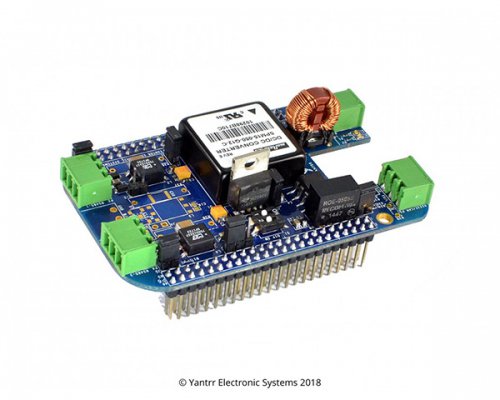

Industrial CANBus, RS485 / RS422 Modbus 2xHD with 15W DC-DC conversion

Yantrr INDU CAN series of capes provide the capability of interfacing with sensors and instruments using CANBus/422/485. These capes are designed to industrial grade I/O interface standards assuring reliable operation and protection in extreme operating environments.

INDU-RS2HD-CAN cape provides -

1x CAN:

• Pluggable 3.5mm 2-pin Terminal Header
• Upto 1 Mbps operation
• Meets the Requirements of ISO11898-2
• 2.5KV RMS SiO2 insulation isolation
• 50-kV/μs Typical Transient Immunity
• 4KV (HBM) ESD protection
• Fail-Safe outputs

2x RS485/RS422:

• Pluggable 3.5mm 3-pin Terminal Header for each port
• 2x Half-Duplex RS485 ports
• Upto 256 devices supported on each port
• Upto 500 kbps operation
• 10KV Surge / 4KV Peak / 2.75KV RMS galvanic isolation
• 30KV (HBM) ESD protection
• Uses standard UART drivers in Linux kernel (linux support provided)

DC-DC Conversion:

• 36V-9V Wide-input range, 5V output (upto 3A, 15W) DC-DC power conversion
• Pluggable 3.5mm 2-pin Terminal Header for DC input source
• 1.5KV RMS isolation
• Provides power to BeagleBone CPU, Yantrr VAYU2/VIBEQ/ARCA systems, other capes installed on BeagleBone header also.

Misc.:

• Dedicated EEPROM for CAPE ID

Compatibility:

• Fully compatible with BeagleBone CPU systems
• Fully compatible with Yantrr VAYU2/VIBEQ/ARCA IoT platforms with builtin 3G/LTE modems

Included in the package

• 3x 3.5mm 3-pin Terminal Plug, Screw Type
