Industrial RS485 / RS422 Modbus 3xHD

Yantrr INDU RS485 provides the capability of interfacing with sensors and instruments using RS232/422/485. These capes are designed to industrial grade I/O interface standards assuring reliable operation and protection in extreme operating environments.

These capes have been tested for compliance with strict EU emission standards.

Note: Product photographs are representative but may not be exact as of the final shipped product.

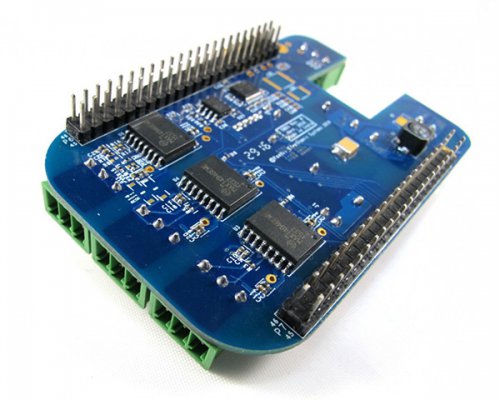

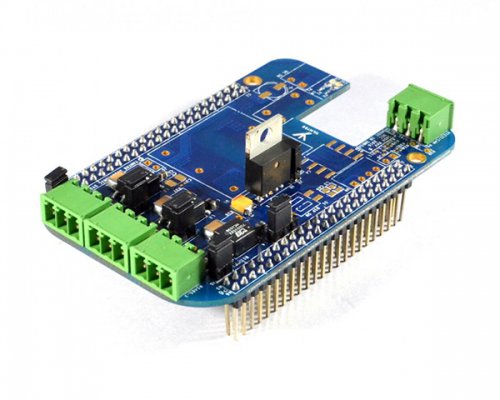

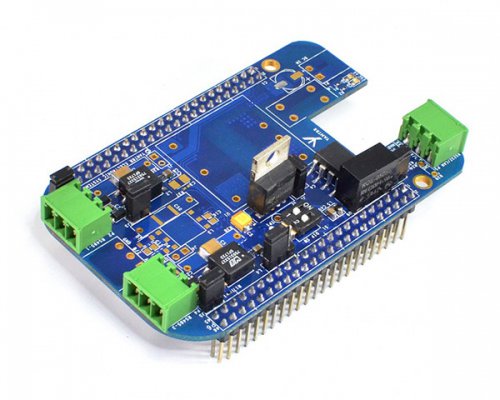

INDU-RS3HD model provides following interfaces -

3x RS485/RS422:

• Pluggable 3.5mm 3-pin Terminal Header for each port
• 3x Half-Duplex RS485 ports
• Upto 256 devices supported on each port
• Upto 500 kbps operation
• 10KV Surge / 4KV Peak / 2.75KV RMS galvanic isolation
• 30KV (HBM) ESD protection
• Uses standard UART drivers in Linux kernel (linux support provided)

1x RS232:

• Pluggable 3.5mm 3-pin Terminal Header
• +/- 25V tolerant I/O

Misc.:

• Dedicated EEPROM for CAPE ID

Compatibility:

• Modbus (requires a Modbus client to be installed and configured)
• Fully compatible with BeagleBone CPU systems
• Fully compatible with Yantrr VIBE/VIBE2 IoT platforms with built-in 3G/LTE modems

Included in the package:

• 4x 3.5mm 3-pin Terminal Plug, Screw Type
